Although pencil and paper still reigns as king of the ways to plan a model railroad layout, computer-aided design (CAD) track planning software is increasingly popular as model railroaders become more comfortable using computers.
This is a roundup of current (as of 2023) track planning software designed to give you a good idea of the depth and range of software as it currently exists. Many of the programs contain track and structure libraries based on manufacturers’ specs. We’ve included screen shots from the manufacturers’ websites.
Note that many of these programs contain myriad features, and not all features are mentioned here. It’s best to visit each vendor’s website for a full listing.
Most vendors offer a demo version that can be downloaded and used for free, although some features of the full version may be disabled, or the demo may have a time or layout size limit. To help you decide which program is best for you, download several of the demo versions and spend some time getting used to their features, then choose the one that best matches your computer skill level and the way you think and work.
The titles are in alphabetical order.

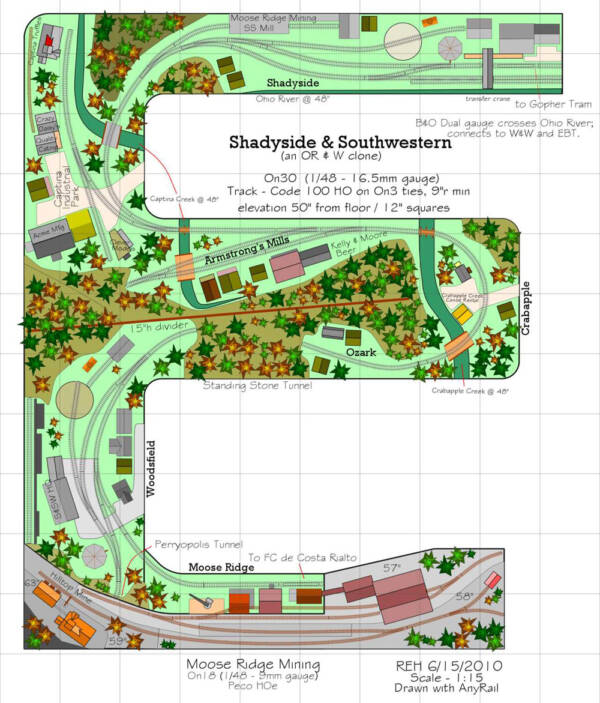

AnyRail Track Software
Website: anyrail.com/en
- Price: $59; “limited” demo version (up to 50 sections of track) has no time limit
- Layouts in all popular scales can be planned with included track libraries
- Creates shopping lists from a track plan
- Library includes components from all major manufacturers
- Has a user forum and free email support
- Free upgrade to version 7 when available
- Windows only
Current version: 6.44.0

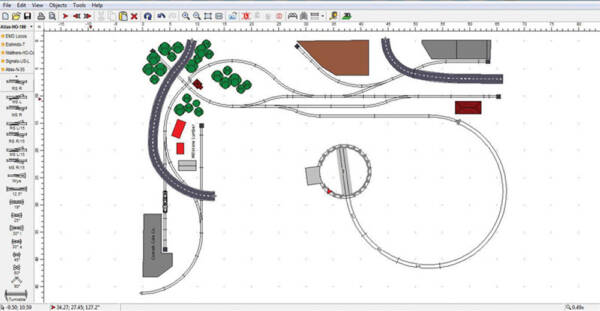

Atlas Track Planning Software
Website: shop.atlasrr.com/t-software.aspx
- Price: $39.95; free demo version
- Simple and easy to use
- Handles both sectional and flextrack
- Allows for multi-level layouts
- Promise of layout libraries with future updates
- Windows only
Current version updated 4/27/22

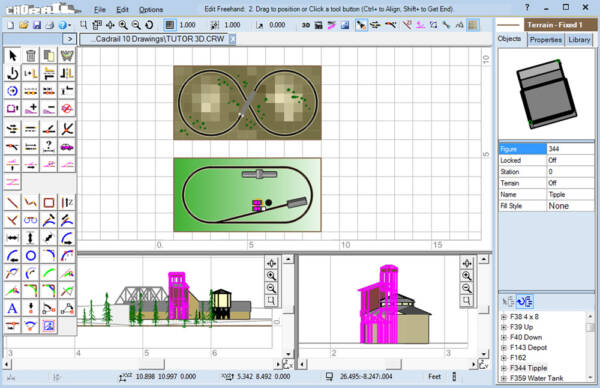

CADRail
Website: sandiasoftware.com
- Price: $99.95; fully functional but limited free demo
- Windows only
- Design layouts, buildings, benchwork, schematics – virtually anything
- Plan, Profile, and 3-D views
- Hundreds of powerful CAD tools
- Can run trains on track plans
- Libraries include thousands of shapes
- Multiple views available on one screen
- Bitmaps, JPGs, and GIFs can be loaded and traced
Current version: CADRail 10

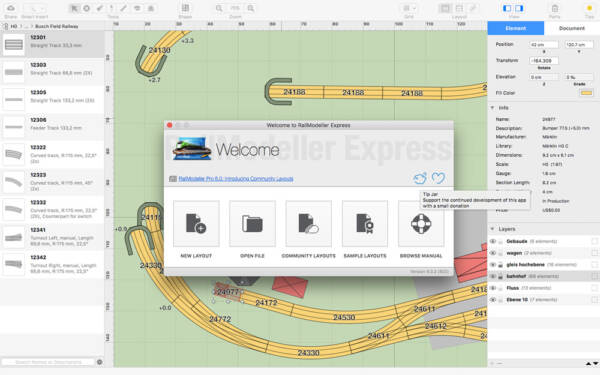

Rail Modeller Pro for Mac
Website: railmodeller.com/home-railmodeller.html
- Price: $39.99; RailModeller Express is the name of the free, limited demo
- Mac OS only
- Can also be used to plan slot car layouts
- Over 270 libraries with more than 6500 elements from popular model railroad brands, from T (1:450) and Z (1:220) up to G (1:22.5)
- Up to 99 lockable layers
- Allows users to create complex layouts in three dimensions
- Generates shopping lists
Current version: Rail Modeller Pro for Mac 6.4.11

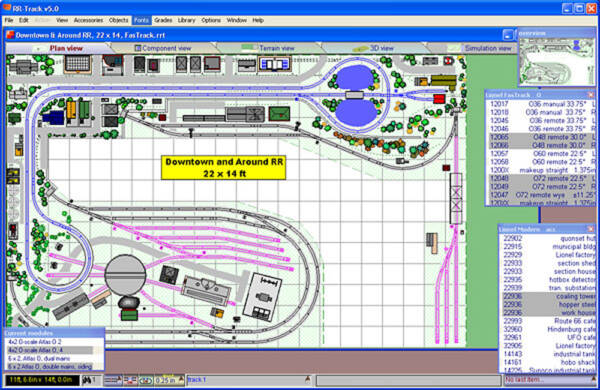

RR-Track
Website: rrtrack.com/index.html
- Price: from $69 to $169 depending on which package and scale is selected
- Windows only, but will run on Mac using an emulator
- For sectional track
- Heavily based in O scale
- Multiple accessory libraries available for purchase
- Up to 128 distinct drawing layers
- Benchwork can be created in Terrain View; 3D view also available
Current version: RR-Track v5.3

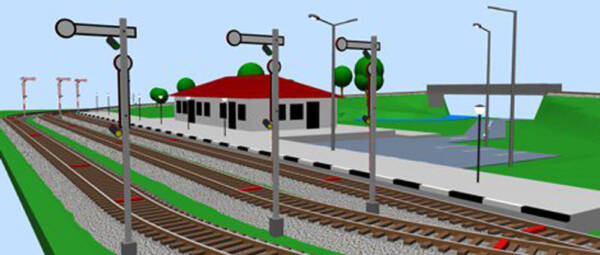

SCARM (Simple Computer Aided Railway Modeler) Model Railroad Software
Website: scarm.info/index.php
- Price: $40; limited number of tracks and objects in free demo
- Windows only
- 225 libraries
- 3-D preview available
- Allows for multi-level layouts
- Creates shopping lists from track plans
- Multilingual
Current version: SCARM 1.9.2

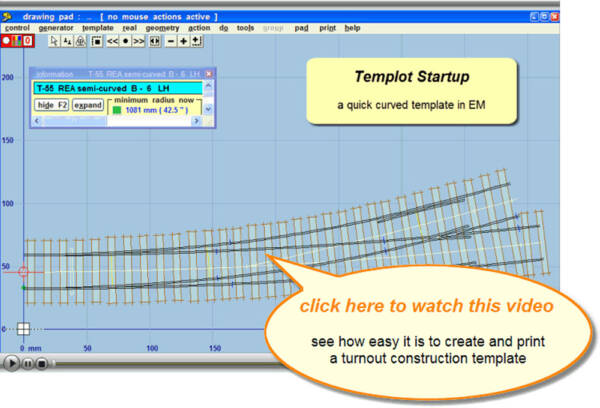

Templot Track Software
Website: 85a.uk/templot/companion/templot_home.php
- Price: free
- Windows only, but will run on Mac using an emulator
- Made exclusively for handlaying track
- Includes precision construction templates for turnouts, crossovers, diamond crossings, and slip switches, all based on prototype designs
- Maps and third-party track plans can be scanned and loaded as a guide
- “Sketchboard” lets you add colorful scenic detail and structures to plans
Current version: Templot 2

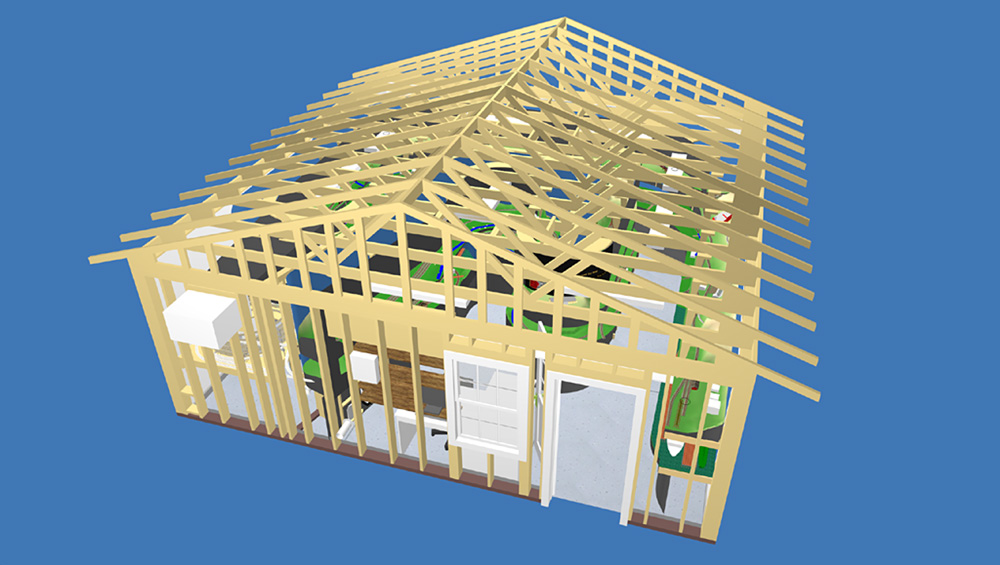

3rd PlanIt Track Planning Software
Website: eldoradosoft.com
- Price: $124.95; limited version is free
- Windows only, but will run on Mac using an emulator
- Any gauge and scale, from tabletop Z-scale to basement and outbuilding empires
- “SoftTrak” feature lets you draw two points and the software creates the curves and easements automatically
- Extensive manufacturer library included
- “Master Training” (one-on-one training with the developer) available for a fee
Current version: v12

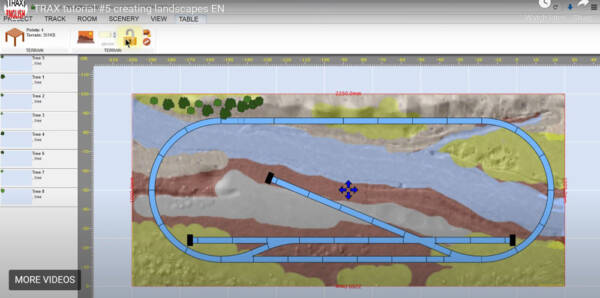

Trax Track Software
Website: traxeditor.com/index.php/about
- Price: free
- Web-based track planning software (not installed on your computer) so it can be used by Chromebook, Linux, Windows, and Mac computers and tablets
- Over 100 track libraries
- Design snapshots can be made
- Aerial photos can be used as a planning background
- User forum
- Scenery, measurements, and annotations still under construction
Current version: not listed

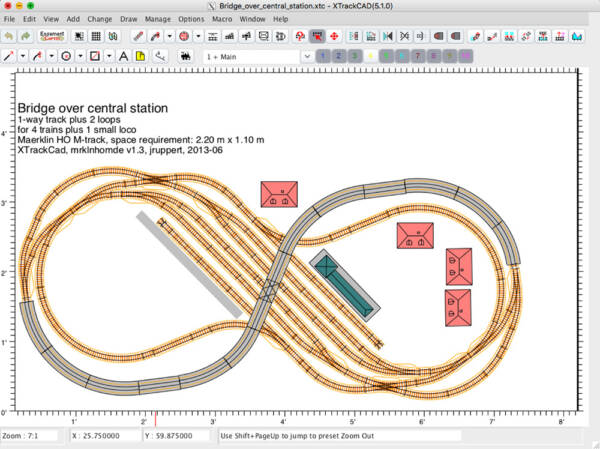

XTrkCAD Train Software
Website: sourceforge.net/projects/xtrkcad-fork/
- Price: Free
- Runs on Mac, Windows, and Linux
- Any scale and gauge
- Predefined libraries for popular brands of turnouts
- Track can be manipulated like actual flextrack
- Designs can be tested by running trains
- Design can be printed in any scale, including 1:1
Current version: 5.2.1
