Mike O’Connell’s O fine scale Pacific Railway & Navigation Co. layout

By Nastassia Putz | July 14, 2022

| Last updated on July 29, 2022

Based on the prototype railroad locals called the "Punk, Rotten and Nasty"

Facts & features

Name: Pacific Railway & Navigation Co.
Scale: Proto:48 (O fine scale)
Size: 40 x 60 feet
Prototype: Northern Pacific; Great Northern; Spokane, Portland & Seattle; and PR&N
Locale: Pacific Northwest
Era: mid-1950s
Style: walk-in multi-deck
Mainline run: approx. 1,200 feet
Minimum radius: 84″
Minimum turnout: no. 7 (spurs), no. 8 (main)
Maximum grade: 1.75 percent
Benchwork: modular
Height: 40″ to 90″
Roadbed: cork
Track: handlaid code 100 and code 125 rail with cast-resin pre-ballasted ties
Scenery: plaster cloth and Sculptamold
Backdrop: hand-painted on 1/8″ tempered hardboard
Control: NCE DCC with wireless throttles

Download a PDF of this track plan!

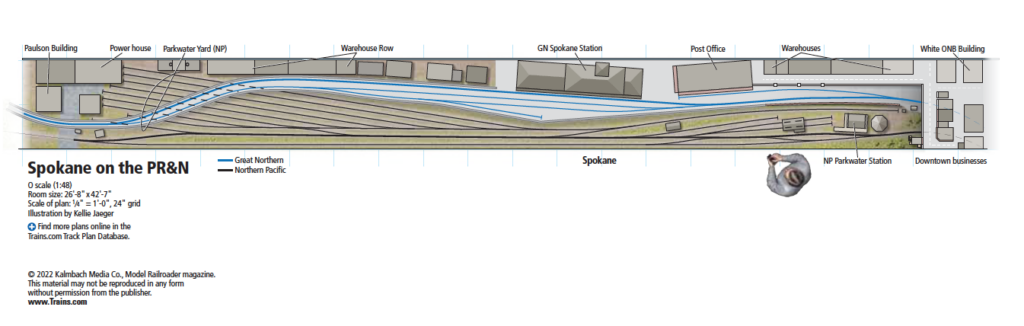

PR&N Spokane layout track plan — Mike O’Connell’s O fine scale Pacific Ry. & Navigation Co. layout.
