HO scale Sante Fe Hereford Subdivision

By | September 14, 2020

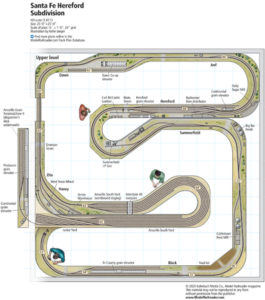

Download this track plan from the September 2020 Model Railroader

Email Newsletter

Get the newest photos, videos, stories and more.

HO scale Sante Fe Hereford Subdivision

HO scale Sante Fe Hereford Subdivision

The layout at a glance
Name: Santa Fe Hereford Subdivision
Layout owner: Sammy Carlile
Scale: HO (1:87.1)
Size: 25 x 25 feet
Prototype: Atchison, Topeka & Santa Fe Ry.
Locale: between Amarillo, Texas, and Clovis, N.M.
Era: summer 1995
Style: multilevel walk-in
Mainline run: 225 feet
Minimum radius: 30″
Minimum turnout: no. 6
Maximum grade: 1.85 percent
Benchwork: open grid
Height: 44″ to 64″
Roadbed: cork over 3⁄4″ plywood
Track: codes 83 and 100 flextrack
Scenery: plaster cloth over screen and extruded-foam insulation board
Backdrop: painted 1/4″ tempered hardboard
Control: Digitrax wireless Digital Command Control

See a PDF version of this by clicking here.
