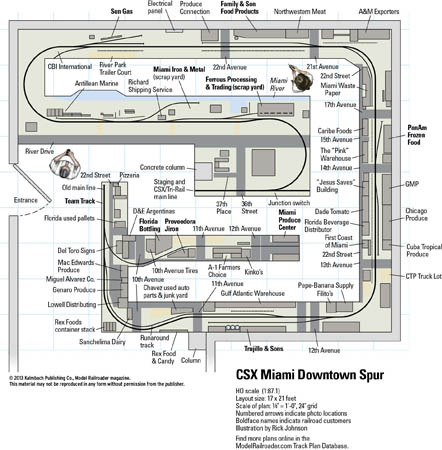

HO scale CSX Miami Downtown Spur

By | October 25, 2013

Download this track plan from Model Railroader

Email Newsletter

Get the newest photos, videos, stories, and more from brands. Sign-up for email today!


Name: CSX Miami Downtown Spur
Layout designer: Lance Mindheim
Scale: HO (1:87.1)
Size: 17 x 21 feet
Prototype: CSX
Locale: Miami
Era: 2007
Style: walk-in
Mainline run: 89 feet
Minimum radius: 24 inches
Minimum turnout: no. 6
Maximum grade: none

Originally appeared in the December 2013 Model Railroader. Click on the link to download the PDF of this track plan.

7 thoughts on “HO scale CSX Miami Downtown Spur

  1. Lance hasn't only brought realistic model railroading to a new level, he has surpassed the legendary John Allen with his modeling skills. Knowing the kind of gentleman John was, he would be proud!

  2. I grew up within walking distance of this line. The accuracy of Mr.Mindheim's modelling is spooky, almost too realistic. The cramped look is accurate. This line also served the Seaboard Air Line passenger station, not a good first impression of Miami. I can remember riding behind #4449 out of this station after she had completed her duty pulling the American Freedom Train in January, 1977. The stack noise was incredibly loud as it echoed off of the warehouses as she slowly negotiated these tracks. Dad and I also used to chase the Silver Meteor and Silver Star down the tracks paralleling North River Drive. Seaboard always coupled their E units elephant style.

  3. This layout has brought model railroading to a whole new level. So realistic it's like actually being there!
