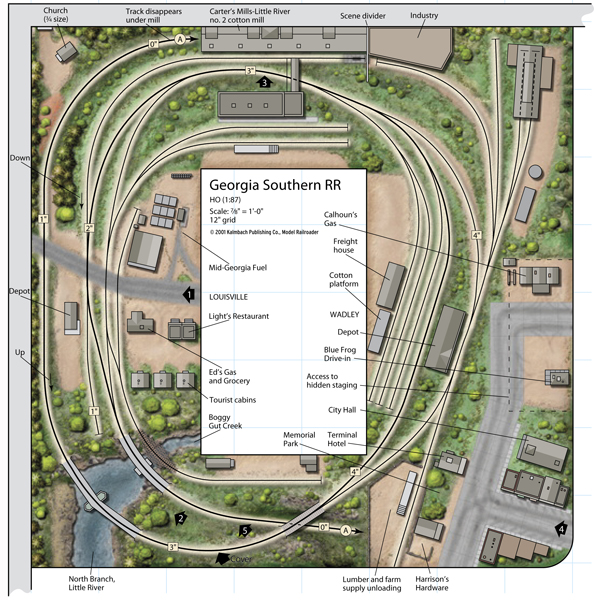

Track plan at a glance
Name: Georgia Southern RR
Scale: HO (1:87)
Size: 8 x 8 feet with center operating area
Theme: free-lance, fictitious subsidiary of the Georgia RR with branch line
Period: summer 1957
Style: two-lap oval with three-track staging yard
Mainline run: 32 feet
Minimum radius: 24″ main line, 20″ through curved turnouts, 18″ on sidings
Minimum turnout: no. 5
Maximum grade: 4 percent
Originally appeared in the April 2001 issue of Model Railroader. Also appeared in 102 Realistic Track Plans.
Click on the link to download a PDF of this track plan
