ScaleTrains.com HO scale Backpacker well car

By Cody Grivno | March 25, 2021

Email Newsletter

Get the newest photos, videos, stories and more.

Interior of a model well car

Backpacker well car

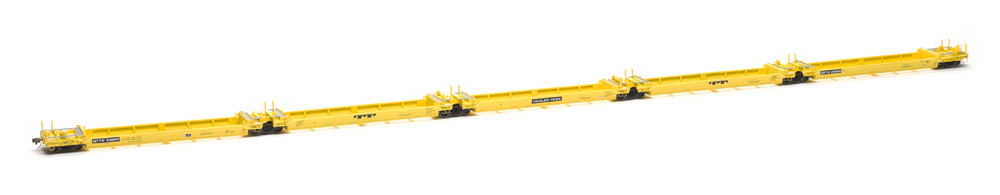

A Pullman-Standard/Trinity Back-packer 5-unit articulated well car is the first intermodal car to be offered in ScaleTrains.com’s HO scale Rivet Counter line. The newly tooled car features die-cast metal and plastic construction, Barber S-2 trucks with rotating bearing caps, and detailed interior sidewalls.

The prototype. Our sample, DTTX no. 64005, is decorated in Trailer Train’s as-delivered scheme. The full-size car, part of the 64005 through 64016 series, was built in May 1987 by Trinity Industries under lot 2107A at Pullman-Standard’s Bessemer, Ala., plant. A stencil on the A unit indicates the car is part of the RWG50A class. What does that mean? R = Trinity Industries, W = double-stack well car, G = M901G high-capacity friction draft gear, 50 = 100-ton articulated trucks, and A = all-purpose.

TTX phased out its fleet of 100-ton well cars throughout the 2010s. Three cars from the 64005 through 64016 series were still listed in the January 2018 Official Railway Equipment Register (ORER). The cars were no longer in
the ORER a year later.

The model. Each unit of the Backpacker has a die-cast metal body with a separate, plastic well floor; etched-metal roping eyes; see-through etched stainless steel end platforms; metal stirrup steps; and Celcon corner uprights and vertical grab irons. The plastic parts are molded in yellow but unpainted. The A, B, and D units have separate air reservoir, control valve, and related wire piping on the platform. The A and B units have wire grab irons on the side and end sills.

The E and C units have a plastic proportion valve and proportion valve pipe. The plastic brake wheel and brake stand, along with the painted wire brake stand grab iron, are on the B unit. The well car has two small plastic bags with matching sets of modeler-installed parts: a brake chain tensioner wheel, brake chain tensioner rod, and brake chain tensioner rod support for the B and C units, as well as inter-box connector pins and spare bearing caps. If the brake parts are added, the well car will require 26″ or greater radius curves. Out of the box, the car can handle 22″ radius curves.

Measuring up. For the most part, the paint was smooth and evenly applied. The paint was a bit thick on the male (D) and female (E) articulated couplings, causing the E unit to not seat properly.

Some minor sanding resolved the issue. The Backpacker has die-cast metal Type E lower-shelf couplers, which are mounted at the correct height. The couplers don’t have trip pins, so they won’t work with magnetic uncoupling ramps. The 33″ (ends) and 36″ (intermediate) metal wheelsets are correctly gauged. At 11.7 ounces, the car is 7.5 ounces too light per National Model Railroad Association Recommended Practice 20.1. Adding containers will help this. I compared the model’s dimensions to data published in the January 1990 ORER. The major dimensions closely follow published data. The distance over the pulling faces was a scale 1′-6″ too long. This is typical on models, as even scale couplers are slightly oversized.

Interior of a model well car
The B end of the B unit has a plastic brake wheel as well as a separate air reservoir, control valve, and related wire piping on the platform.

On the rails. Then I took the car to our HO scale Milwaukee, Racine & Troy staff layout, which has 36″ minimum radius curves and nos. 4 through 6 turnouts. I ran the car, arranged in a B-C-D-E-A configuration, with seven other five-unit articulated well cars from other manufacturers. The ScaleTrains.com model navigated turnouts without incident while being pushed and pulled. The car stayed on the rails while being pushed up a curving 3 percent grade.

Two 20-foot or one 40-foot container will fit in the well. The upper position can be occupied by containers up to 48 feet long (or 53 feet if put in every other well). I tested containers from ScaleTrains.com, Athearn, Atlas, and Walthers in the well. I was unable to get a pair of Athearn 20-foot containers to fit in the well. Otherwise, all the containers fit properly.

Designing a well car that’s accurate and functional isn’t an easy task, but ScaleTrains.com pulled it off on this Rivet Counter line model. A smart mix of plastic, etched-metal, and wire details enhance this container hauler, while the die-cast metal bodies make the car a solid performer. Though the Backpackers are sold out at the manufacturer, you can still find them through ScaleTrains.com retailers.

Facts & features

Price: $139.99
Manufacturer
ScaleTrains.com
7598 Highway 411
Benton, TN 37307
scaletrains.com
Era: 1987 to 2018
Road names: Trailer Train (six road numbers) and “K” Line/Trailer Train (two numbers)
Features
– 33″ (ends) and 36″ (articulation points) metal wheelsets, in gauge
– Barber S-2 trucks with rotating bearing caps
– Die-cast metal semi-scale Type E lower shelf couplers, at correct height
– Minimum radius 22″ (26″ radius required when supplied detail parts are added to B and C units)
– See-through stainless steel walkways
– Weight: 11.7 ounces (7.5 ounces too light based on National Model Railroad Association Recommended Practice 20.1)
– Wire grab irons on A and B units
