On30 Laurium, Mohawk & Brockway Ry.

By | November 14, 2020

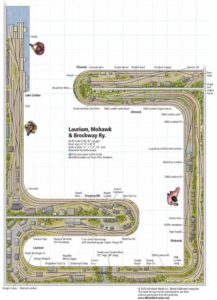

Download this track plan from the November 2020 issue of Model Railroader

Email Newsletter

Get the newest photos, videos, stories and more.

Download this track plan from the November 2020 issue of Model Railroader

Download this track plan from the November 2020 issue of Model Railroader

The layout at a glance
Name: Laurium, Mohawk & Brockway
Layout owner: Larry Burk
Scale: On30 (1:48, 30″ track gauge)
Size: 27 x 38 feet
Prototype: freelanced
Locale: Michigan’s Upper Peninsula
Era: 1935
Style: shelf
Mainline run: 150 feet
Minimum radius: 24″
Minimum turnout: no. 5
Maximum grade: 4 percent on switchback to lumber branch
Benchwork: cantilevered open grid
Height: 48″ to 55″
Roadbed: foam
Track: handlaid code 83
Scenery: foam board
Backdrop: Trackside Scenery photo backdrops
Control: NCE wireless DCC

This track plan originally appeared in the November 2020 issue of Model Railroader magazine. See a PDF version of this by clicking here.
