N scale Brooklyn Terminal

By | August 23, 2021

Email Newsletter

Get the newest photos, videos, stories and more.

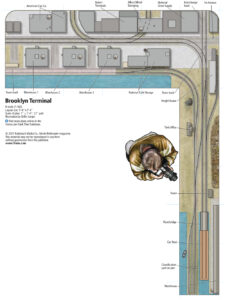

Overview of a track plan

Facts & features

Overview of a track plan

Name: Brooklyn Terminal
Scale: N (1:160)
Size: 5′-6″ x 7′-4″
Prototype: Bush Terminal, N.Y. Dock Ry., Fulton Terminal
Locale: Brooklyn, N.Y.
Era: 1940s
Style: island
Minium radius: 7″ on Unitram street track, 14″ elsewhere
Minimum turnout: no. 3 on Unitram street track, no. 6 elsewhere
Maximum grade: none (flat)
Benchwork: open grid
Height: 57″
Roadbed: none; track laid directly on plywood
Track: Kato Unitram, Micro Engineering code 40, handlaid code 40 turnouts
Control: CVP EasyDCC with wireless throttles

Click here to download a PDF version of this track plan.
