Lloyd Henchey’s HO scale MHO Junction layout

By | May 16, 2022

A new house and hobby led to this 25 x 38-foot HO scale layout

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

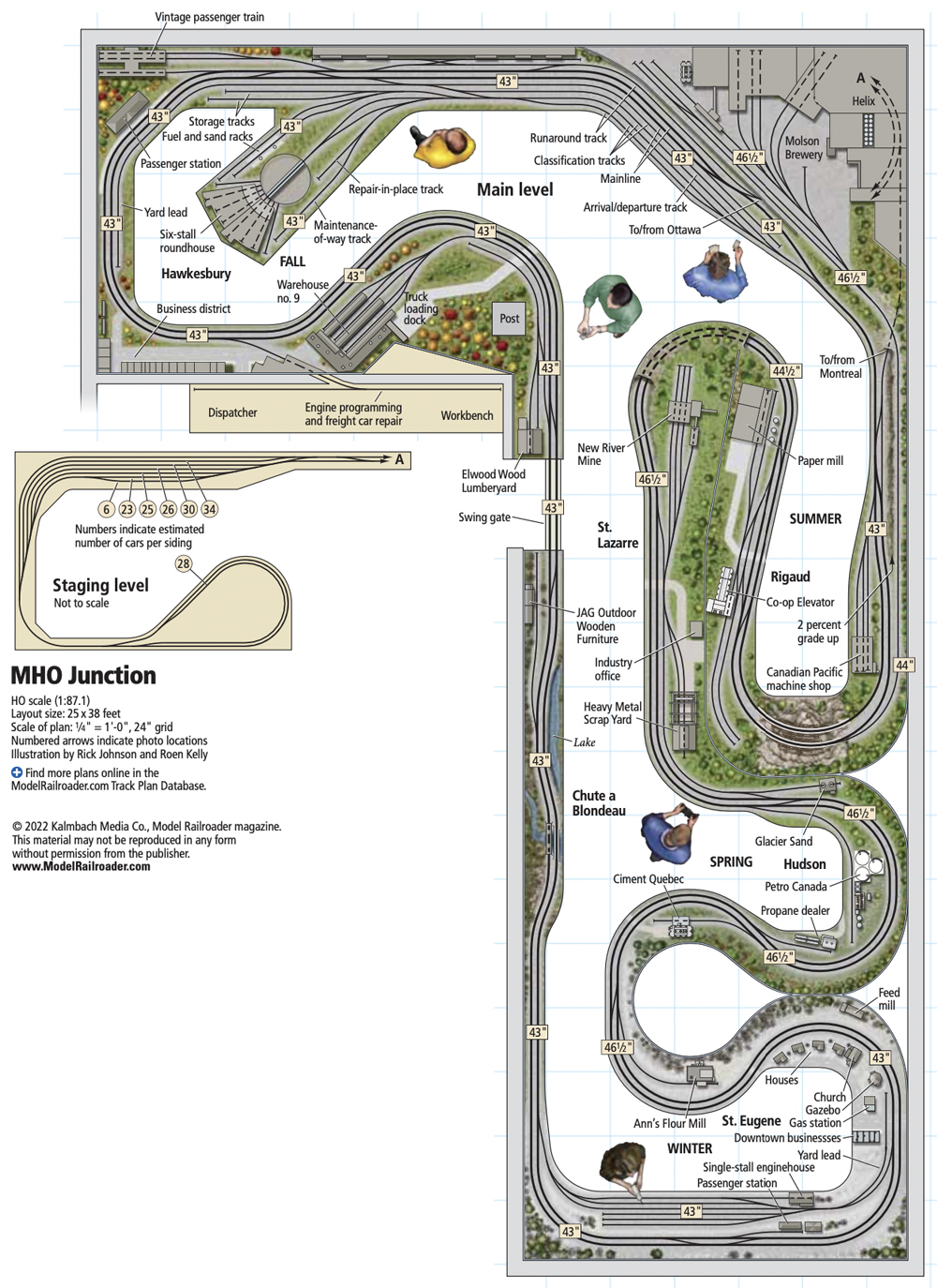

Henchey's track plan

Facts & features

Name: MHO Junction
Scale: HO (1:87.1)
Size: 25 x 38 feet
Prototype: 80 percent freelanced, 20 percent prototype (Canadian Pacific and Ontario Northland)
Locale: Ontario and Quebec (between Ottawa and Montreal)
Era: 1970s
Style: walk-in
Mainline run: 170 feet
Minimum radius: 30″
Minimum turnout: Peco large radius (SL-88 and SL-89)
Maximum grade: 2 percent
Benchwork: open grid
Height: 43″ to 47″
Roadbed: cork
Track: Atlas code 100, Peco turnouts
Scenery: extruded-foam insulation board and plaster cloth
Backdrop: Custom backdrops from Train Junkies
Control: NCE Digital Command Control

Download a PDF of this track plan!

Henchey's track plan
Lloyd Henchey’s HO scale MHO Junction layout.
