Jason Shron’s HO scale Kingston Subdivision layout

By | April 12, 2022

This multi-deck layout embodies his love for Canadian railroading

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

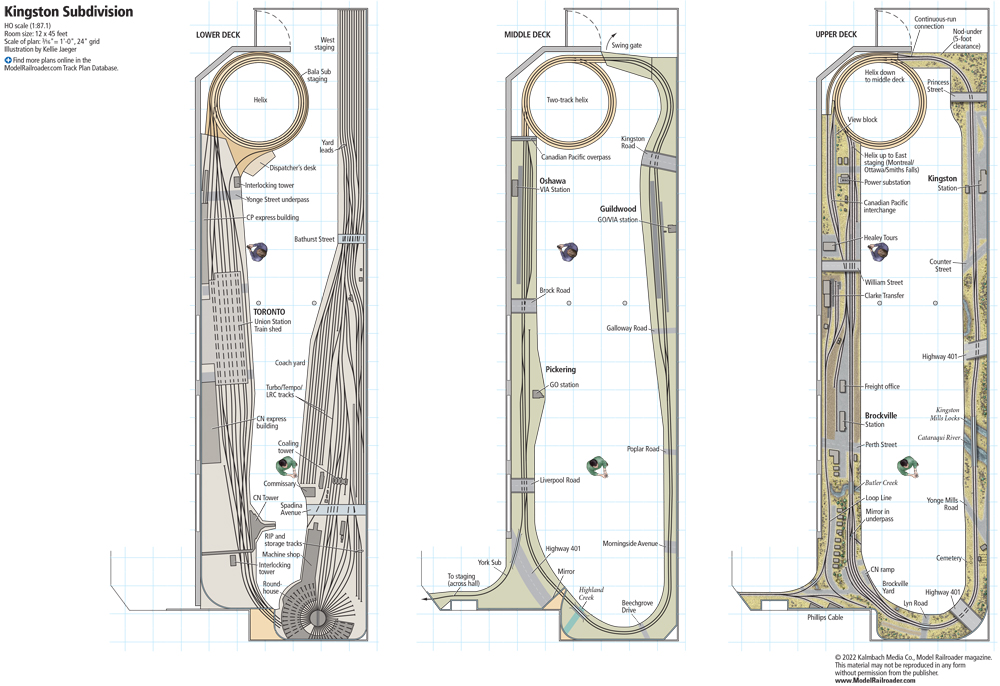

Track plan of Kingston Subdivision

Facts & featuresTrack plan of Kingston Subdivision

Name: Kingston Subdivision
Scale: HO (1:87.1)
Size: 12 x 45 feet
Prototype: VIA Rail Canada, Canadian National, GO Transit, and Canadian Pacific
Locale: Toronto, Ont., to Brockville, Ont.
Era: November/December 1980
Style: multi-deck around-the-walls
Mainline run: 310 feet scenicked, plus 245 feet in helix
Minimum radius: 36″ (main), 30″ (freight-only lines)
Minimum turnout: no. 8 (main), no. 6 (freight-only lines)
Maximum grade: 2 percent
Benchwork: open grid (deck one), plywood shelf supports (upper decks)
Height: 26″ to 59″ (east staging at 72″)
Roadbed: cork on EPDM foam sheet
Track: Peco code 83 and code 70
Scenery: plaster and cellulose insulation material mix on aluminum window screen
Backdrop: photos on painted sheetrock or 1/8″ MDF
Control: NCE Digital Command Control

Download a PDF of this track plan!
