HO scale Santa Fe Shortline

By | August 22, 2021

Download this track plan from Model Railroader magazine

Email Newsletter

Get the newest photos, videos, stories and more.

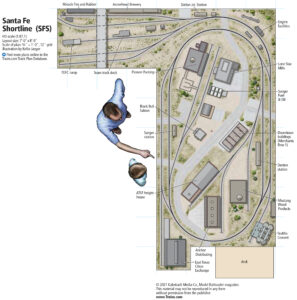

Overview of a track plan

The layout at a glance

Overview of a track plan

Name: Santa Fe Shortline (SFS)
Scale: HO (1:87.1)
Size: 7′-0″ x 8′-0″
Prototype: Freelanced Santa Fe shortline
Era: April 1961
Style: Island
Mainline run: 18 feet
Minimum radius: 18″
Minimum turnout: no. 4
Maximum grade: none
Benchwork: Plywood base on bookcases
Height: 37″
Roadbed: None
Track: Atlas Snap-Track
Scenery: Sculptamold over foam
Backdrop: None
Control: MRC Tech 4 220 DC

Click here to download a PDF version of this track plan.
