HO scale Great Northern Ry. Cascade Division

By | June 14, 2020

Download this track plan from the June 2020 Model Railroader

Email Newsletter

Get the newest photos, videos, stories and more.

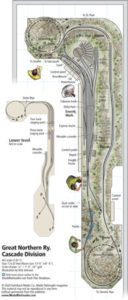

HO scale Great Northern Ry. Cascade Division

HO scale Great Northern Ry. Cascade Division

The layout at a glance
Name: Great Northern Cascade Division
Layout owner: Lee Marsh
Scale: HO (1:87.1)
Size: 12 x 32 feet
Prototype: Great Northern Ry., Northern Pacific (trackage rights)
Locale: Everett, Wash., and Stevens Pass in the Cascade Mountains
Era: 1947 to 1951
Style: island
Mainline run: 142 feet
Minimum radius: 24″ (helixes)
Minimum turnout: no. 6
Maximum grade: 2.7 percent (helixes)
Benchwork: L girder and open grid, plywood in staging and yard
Height: 51″ to 59″
Roadbed: cork and 1⁄2″ plywood
Track: Atlas code 83 flextrack
Scenery: plaster hardshell
Backdrop: painted tempered hardboard

Control: Digitrax Digital Command Control

See a PDF version of this by clicking here.
