Eagle River Lines

By | March 25, 2021

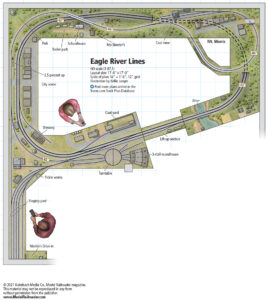

Download this track plan from Model Railroader magazine

Email Newsletter

Get the newest photos, videos, stories and more.

The layout at a glance

Name: Eagle River Lines
Scale: HO (1:87.1)
Size: 17 x 17 feet
Prototype: freelanced
Locale: Detroit area
Era: 1950s
Style: around-the-walls
Mainline run: 55 feet
Minimum radius: 36” (main), 24” (branch)
Minimum turnout: no. 8 (main), no. 6 (spurs and branch)
Maximum grade: 2 percent
Benchwork: sectional
Height: 42”-46”
Roadbed: cork
Track: Atlas code 83 flextrack with Peco turnouts
Scenery: extruded-foam insulation board and “ground goop”
Backdrop: painted on the walls
Control: Digitrax Digital Command Control

See a PDF version of this track plan by clicking here.
