Discovery World’s HO scale All Aboard layout

By | July 14, 2022

This layout depicts scenes loosely based on the Milwaukee Road

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

All Aboard layout track plan

All Aboard facts & features

Name: All Aboard
Scale: HO (1:87.1)
Size: 10 x 35 feet
Prototype: freelanced, based on Milwaukee Road
Locale: Wisconsin
Era: 1940-60s
Style: walkaround
Mainline run: Red Track, 58 feet; Blue Track, 49 feet
Minimum radius: 24″
Minimum turnout: no. 5 (yard), no. 6 (other)
Maximum grade: 3 percent
Benchwork: open grid
Height: 32″
Roadbed: Woodland Scenics Track Bed
Track: Walthers (Shinohara) code 83 flextrack
Scenery: Sculptamold/plaster cloth over extruded-foam insulation board
Backdrop: Photos of Ohio landscape mounted on tempered hardboard
Control: NCE DCC

Download a PDF of this track plan!

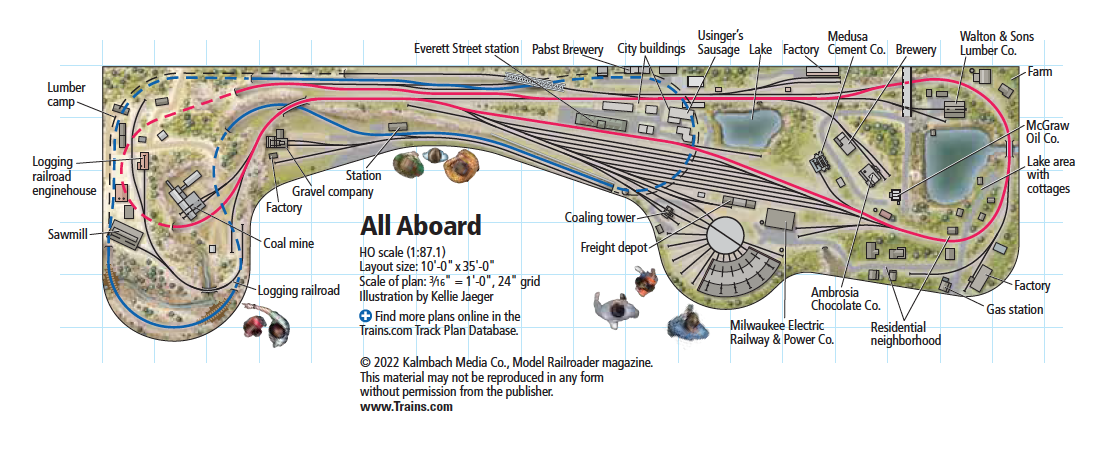

All Aboard layout track plan
Discovery World’s HO scale All Aboard layout.
