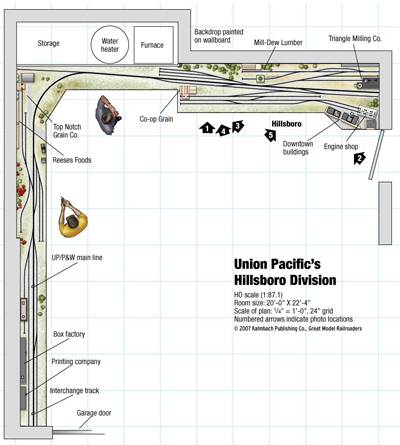

Track plan at a glance Name: Union Pacific Hillsboro Division Scale: HO (1:87.1) Size: 20′-0″ x 20′-0″ Prototype: Union Pacific and Portland & Western RRs Period: 1990 to the present Style: shelf Mainline run: 50 feet Minimum radius: 36″ Minimum turnout: no. 4 Originally appeared in the October 2007 issue of Model Railroader. Click here […]

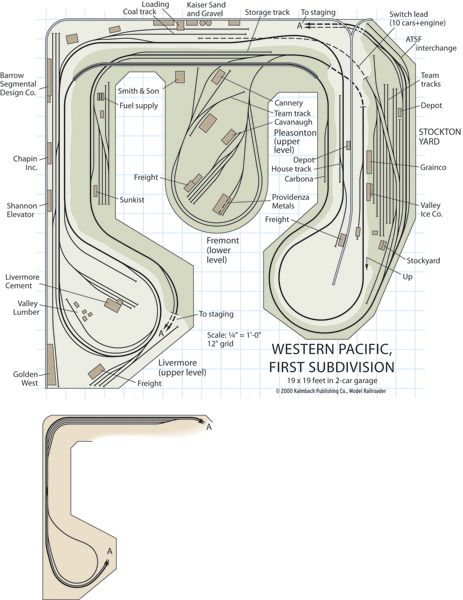

Track plan at a glance Name: Western Pacific, First Subdivision Scale: HO (1:87) Size: 19 x 19 feet Prototype: Western Pacific Period: 1966 Style: walk-in, around-the-walls Mainline run: 125 feet (2 scale miles) Minimum radius: 26″ on main line Minimum turnout: no. 4, no. 6 on main Maximum grade: 3 percent Click here to download […]

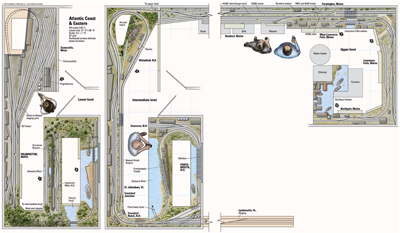

Track plan at a glanceName: Atlantic Coast & EasternScale: HO (1:87.1)Size: 21′-0″ x 26′-6″Era: late 1950s to early 1960sStyle: walkaround on two levelsMainline run: 285 feetMinimum radius: 22″Minimum turnout: no. 4 (yards) no. 6 (main lines)Maximum grade: 3 percentOriginally appeared in the 2006 issue of Great Model Railroads.Click on the link to download a PDF […]

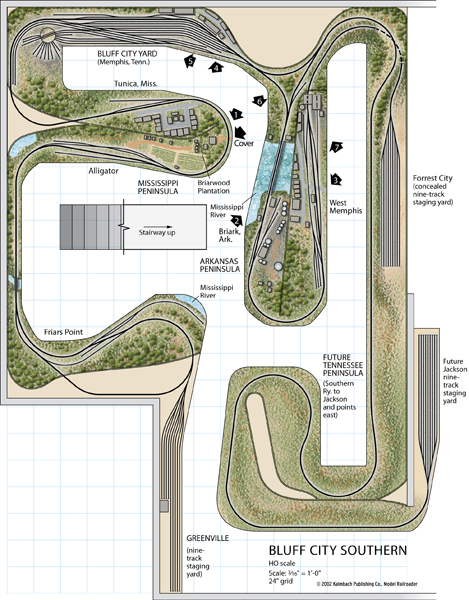

Track plan at a glance Name: Bluff City Southern Scale: HO (1:87) Size: 30 x 44 feet Prototype: free-lanced interchange terminal connecting five railroads Period: 1950 Mainline run: (Greenville to Forrest City) 110 feet Minimum radius: 34″ Minimum turnout: main line, no. 8; yard and industry tracks, no. 6 Maximum grade: 1.25 percent Originally appeared […]

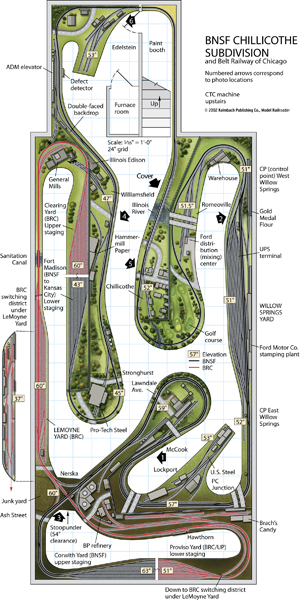

Track plan at a glance Name: Chillicothe Sub Scale: HO (1:87) Size: 23 x 62 feet Prototype: Burlington Northern Santa Fe and Belt Railway of Chicago Period: present day Style: linear walkaround Mainline run: 300 feet Minimum radii: 32″ Minimum turnout: no. 6 Maximum grade: 2 percent Originally appeared in the February 2002 issue of […]
Track plan at a glance Scale: HO Size: 2 x 11 feet Minimum turnout: no. 5 Originally appeared in the October 2002 issue of Model Railroader. See a PDF version of this track plan by clicking here. […]

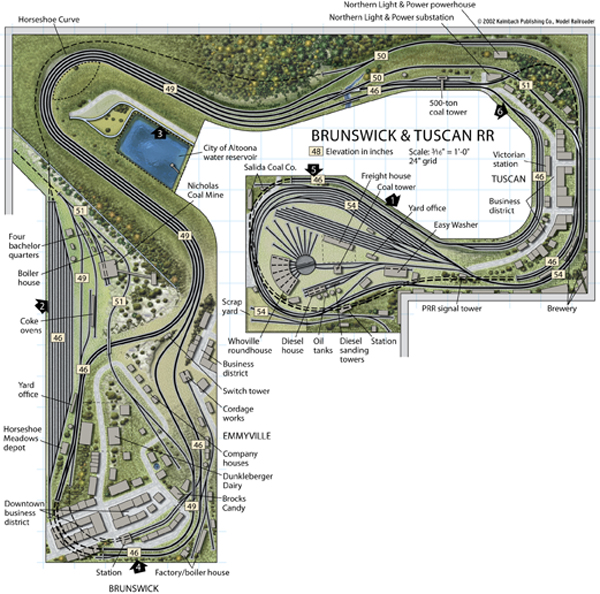

Track plan at a glance Name: Brunswick & Tuscan RR Scale: HO (1:87) Size: 34 x 37 feet Prototype: Pennsylvania RR Period: mid-1950s Style: walkaround with point-to-point and continuous running Mainline run: 460 feet Minimum radius: 32″ Minimum turnout: no. 6 main; no. 4 yards Maximum grade: 1.4 percent Originally appeared in the December 2002 […]

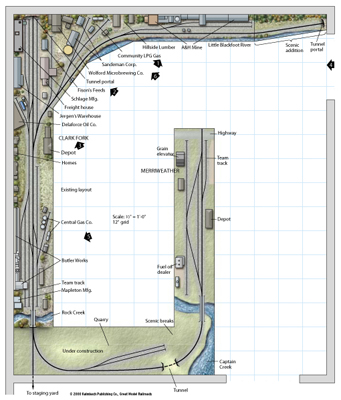

Track plan at a glance Name: Clark Fork, John Flann RR Scale: HO (1:87) Size: 13 x 15 feet with a five-track staging yard, eight feet long, in an adjacent room Theme: short line interchanging with the Burlington Northern Period: 1980s Style: L-shaped shelf Minimum radius: wide transitions, but no specific radius Minimum turnout: Peco […]

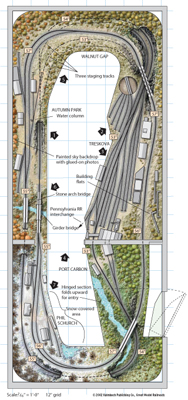

Track plan at a glance Name: Coal Belt Scale: HO (1:87) Size: 8 x 20 feet Prototype: free-lanced, based on anthracite region railroads Era: 1910-1920 Style: around-the-walls Mainline run: 92 feet Minimum radius: 24″ with easements Minimum turnout: no. 6 Maximum grade: 2.5 percent Originally appeared in the 2002 issue of Great Model Railroads. Also […]

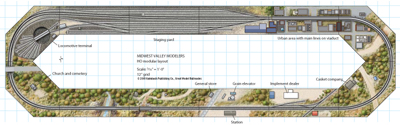

Track plan at a glance Name: Midwest Valley RR Scale: HO (1:87) Size: 9½ x 32½ feet Prototype: mainline railroading Era: modern (1950s to present by changing structures and details) Style: island, modular Mainline run: 70 feet Minimum radius: 42″ Minimum turnout: no. 6 Originally appeared in the 2001 issue of Great Model Railroads. See […]

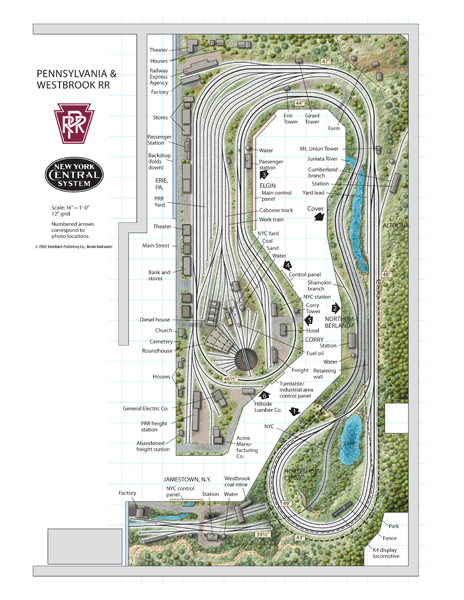

Track plan at a glance Name: Pennsylvania & Westbrook Scale: HO (1:87) Size: 13 x 26 feet Prototype: Pennsylvania RR and New York Central Period: mid-1950s Style: around the walls, folded dogbone Mainline run: 125 feet Minimum radii: 30″ on main line except Horseshoe Curve’s 26″ minimum Minimum turnout: no. 6 Maximum grade: 2 percent […]

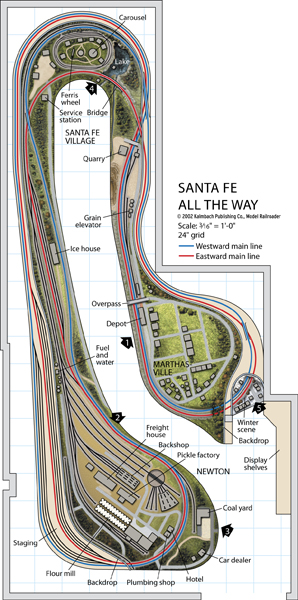

Track plan at a glanceName: Santa Fe all the way!Scale: HO (1:87)Room size: 20 x 42 feetPrototype: free-lanced Santa Fe division point in the MidwestPeriod: steam/diesel- 1940 to 1960Style: walk-inMainline run: 165 feetMinimum radius: visible areas 48″, hidden track 36″Minimum turnout: Atlas no. 6Maximum grade: 1.1 percentOriginally appeared in the August 2002 issue of Model […]
