Union Pacific Big Boy differences from the 2019 tour

By Jim Wrinn | August 12, 2021

These 5 changes make Big Boy 4014 physically different from 2019 and even more unique among surviving locomotives

Email Newsletter

Get the newest photos, videos, stories, and more from Trains.com brands. Sign-up for email today!

Close-up of chrome part showing notch.
Big Boy 4014 cab interior while parked at Kansas City Union Station with engineer Ed Dickens on right. Note the PTC box in front of him. Photograph by Roy Inman

Union Pacific Big Boy differences from its 2019 tour are subtle, but you can still see them. Here are some of the most visible changes to the engine that you can spot as the engine rolls by or during one of its display stops.

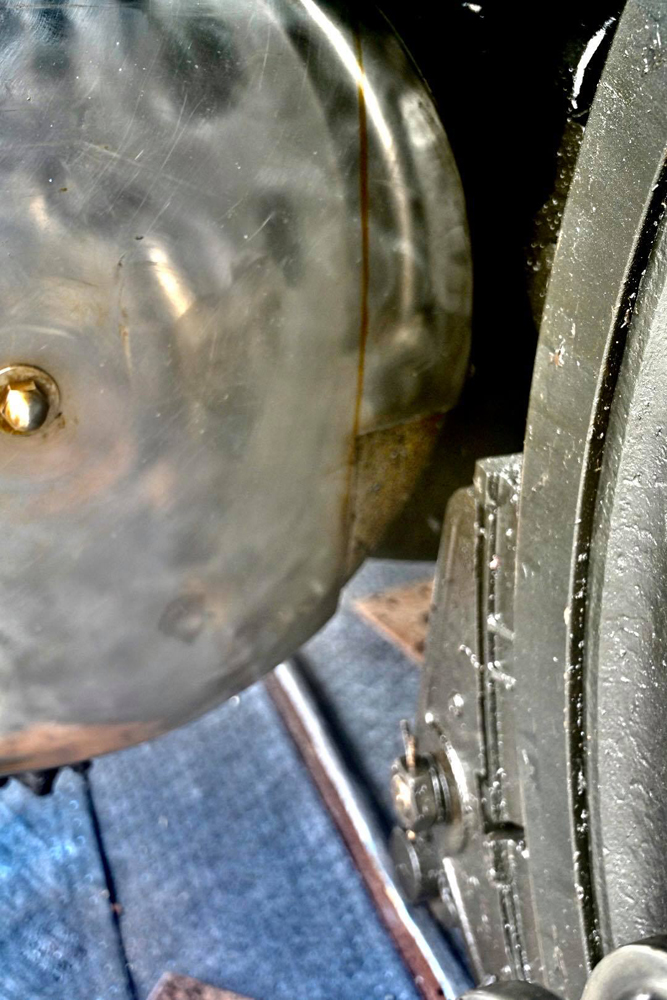

Close-up of chrome part showing notch.
Chromed cylinder head covers are notched on Big Boy No. 4014’s second engine to clear brake beam hangers. Photograph by Bruce Brackley

Big Boy cylinder head and piston head covers

Big Boys had them in regular service in the 1940s and 1950s, but No. 4014 took to the road in 2019 without them. They’re on now. The chromed covers on the second engine are fascinating: they’re machined so as to not interfere with the brake hangers.

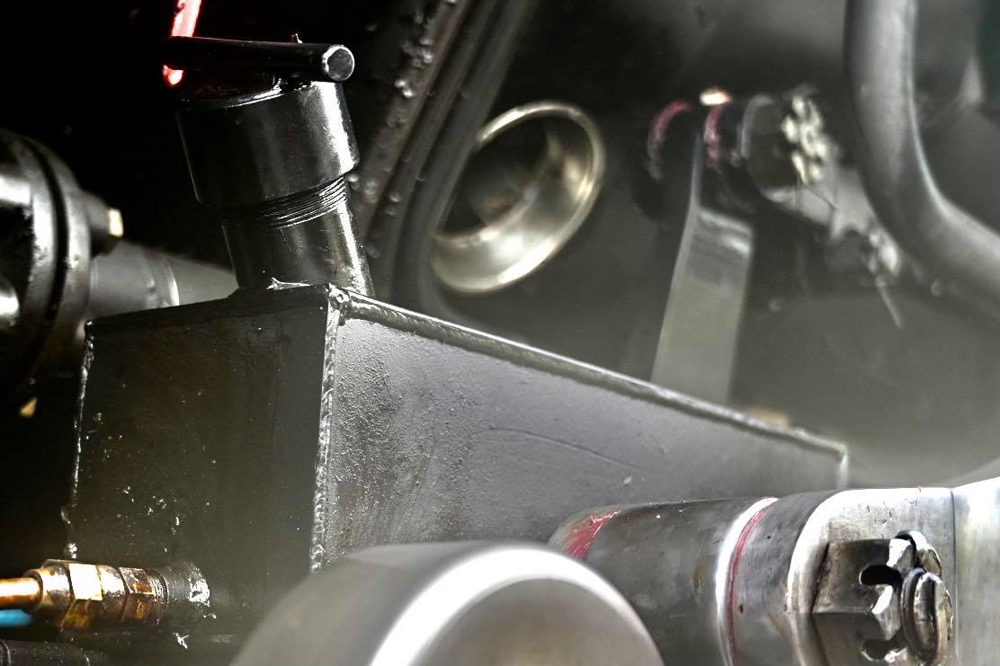

Metallic box with cap and pipe at top to fill and hose connection in front.
Extended range oil reservoirs or mechanical lubricators. Photograph by Bruce Brackley

Extended range oil reservoirs for the mechanical lubricators

Here’s a great step forward for ensuring that the Nathan lubricators are always full, and that the stops to fill them are less frequent. They’re carefully tucked into spots nearby the chain-driven lubricators.

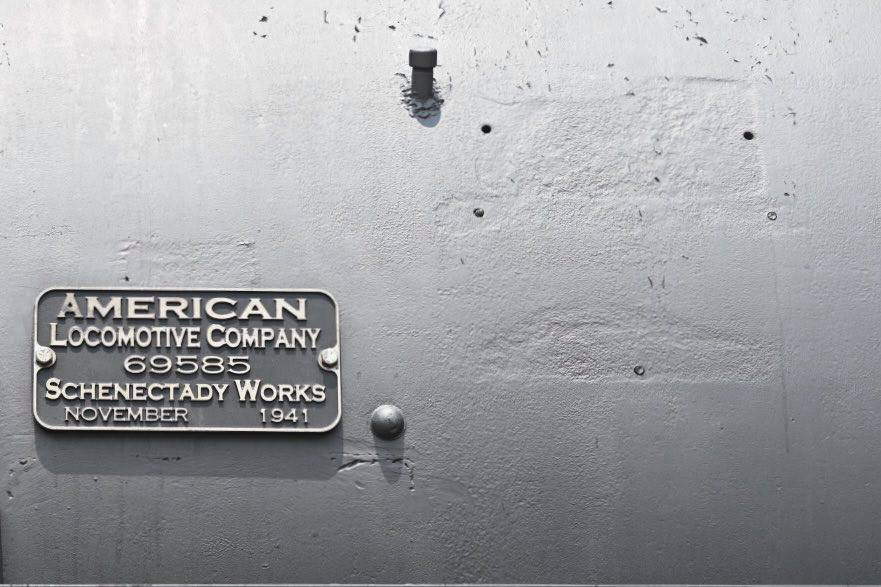

Metal plate reading “American Locomotive Company” with date and serial number; bolt holes nearby show former locations of earlier versions of plate.
Builder’s plates adorn the smokebox. Shadowed areas show where plates have been affixed to the smokebox in the past. Photograph by Bruce Brackley

Union Pacific Big Boy No. 4014 Builder’s plates

Sometime during its decades-long preservation, the builders plates were removed. Replica American Locomotive Co. plates didn’t adorn the engine’s smokebox in 2019. They do now.

Positive train control

Unseen is positive train control gear in the steam locomotive cab that allows the engine to work with its helper diesel unit to run the crash avoidance system that is now mandatory across the land. It looks somewhat like a big toaster oven with a screen on it.

Big Boy chalk writing

Incidentally, the chalked “Big Boy” on the smokebox front is hand refreshed from time to time, most often after the engine has been through a good soaking rain. Each of those signatures is unique.

Union Pacific Big Boy differences, what has not changed?

One of my favorite aspects of the locomotive’s appearance that hasn’t changed are the silvered washout plug covers in the jacketing. They’re made of stainless-steel dog water bowls whose bottoms have been removed. A clever way to handle those awkward openings in the sheet metal, and my 5-year-old Brittany Spaniel, Millie, approves.

So, next time you see No. 4014, be sure to study the engine carefully. After it came home to Cheyenne in 2014, its appearance changed — notably with the loss of the coal-burning grate system underneath the firebox. The engine has changed yet again. And I bet you that when No. 4014 runs again later this year or in 2022, it will display yet more change. That’s part of the fun of steam locomotives.

7 thoughts on “Union Pacific Big Boy differences from the 2019 tour

  1. Regarding the PTC application, does “allows the engine to work with its helper diesel unit” mean that 4014’s PTC is not stand alone operable?

    1. With the top five differences union Pacific’s big boy 4014 had made since she was restored to operating condition when those have questions in PTC territory had those wonder if a helper unit was one of the few centennials also restored to operating condition when in other cases a diesel locomotive is part of the consist for providing power to passenger coaches as other reasons the diesel is there to provide dynamic braking when others have questions is 4014’s PTC controller stand alone. With others wonder if the builder’s plate with the serial number was removed during cosmetic restoration before she was restored to operating condition when replica builder’s plates are installed.

  2. Ditch lights?.. are you nuts? First of all she was built before 1949 so she is exempt. Second and most important enough has been done to “update” the engine, let her keep some of the original dignity from ALCO. There should be a waiver for any classic engine steam or diesel to not have ditch lights. They look stupid anyway.

  3. Jim, Not to be too picky, but when we visited Omaha in August of 2019 (2-4) 4014 had the builders plates installed as shown in your photo. I don’t know when they were installed, perhaps after the inaugural trip to Ogden, but they were definitely there during the Midwest tour. I too noticed the addition of the PTC components in a couple YouTube videos taken from within the cab as well as the cylinder covers. On this last item, I have to admit, I preferred the more utilitarian look of the cylinders without the covers, but can appreciate that they were original equipment that Ed Dickens likely wanted to reinstall for the sake of historical accuracy.

  4. Also, let’s not forget the recent re-installation of the rebuilt retractable smoke hood around the stacks. 🙂

  5. I can appreciate it getting PTC for as a mainline locomotive it should…ditch lights too if I say so.
