HO scale Midwest Lines

By | December 14, 2020

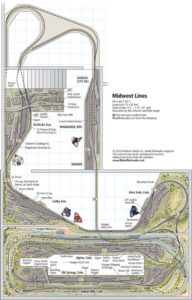

Download this track plan from the December 2020 Model Railroader magazine

Email Newsletter

Get the newest photos, videos, stories and more.

HO scale Midwest Lines

HO scale Midwest Lines

The layout at a glance
Name: Midwest Lines
Layout owner: Rolf Plachter
Scale: HO (1:87.1)
Size: 33 x 52 feet
Prototype: freelanced, inspired by Chicago, Burlington & Quincy; Rock Island; and Union Pacific
Locale: Denver to Milwaukee
Era: mid-1960s
Style: around-the-walls
Mainline run: 400 feet
Minimum radius: 36″
Minimum turnout: no. 4
Maximum grade: 2 percent
Benchwork: open grid
Height: 43″ to 53″
Roadbed: cork on ¾” plywood
Track: code 100 flextrack
Scenery: Hydrocal over window screen
Backdrop: tempered hardboard and crescent board with hand-painted and commercial backdrops

Control: Lenz Digital Plus Digital Command Control



This track plan originally appeared in the December 2020 issue of Model Railroader.

MRR_ho_scale_midwest_lines_trackplan_1220
