George Campbell’s HO scale Campbell Road

By | July 23, 2021

Check out this track plan from the September 2021 issue of Model Railroader!

Email Newsletter

Get the newest photos, videos, stories and more.

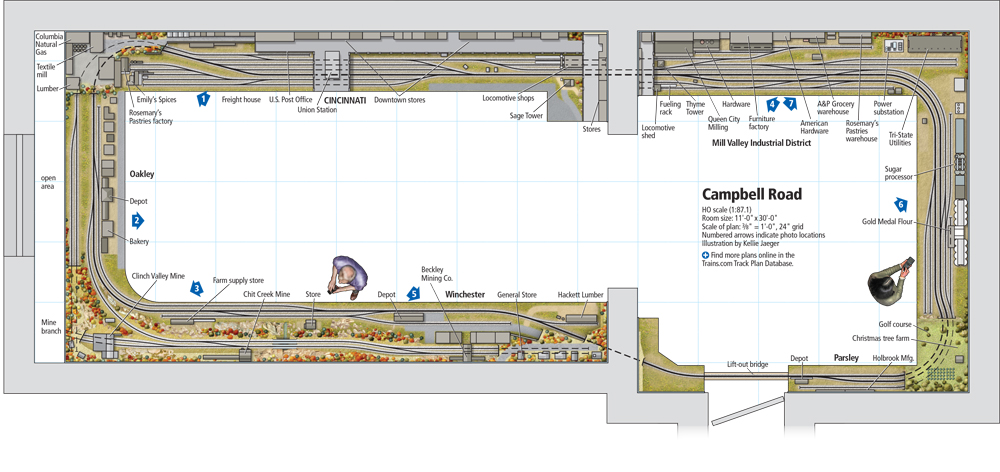

Overview of track plan

The layout at a glance

Name: Campbell Road
Scale: HO (1:87.1)
Size: 11 x 30 feet
Prototype: freelanced, Norfolk & Western, and Louisville & Nashville
Locale: Cincinnati, Ohio, to Appalachia
Era: autumn 1942-1945
Style: around-the-walls
Mainline run: 82 feet
Minimum radius: 22″ (main), 18″ (sidings)
Minimum turnout: no. 4
Maximum grade: 2.5 percent
Benchwork: open grid, cantilevered from walls
Height: 48″ to 54″
Roadbed: cork
Track: Atlas code 100
Snap-Track Scenery: extruded-foam insulation board
Backdrop: commercial photo backdrops on Gatorboard over blue-painted walls
Control: Digitrax Digital Command Control

Click here to download a PDF version of this track plan.

Overview of track plan
